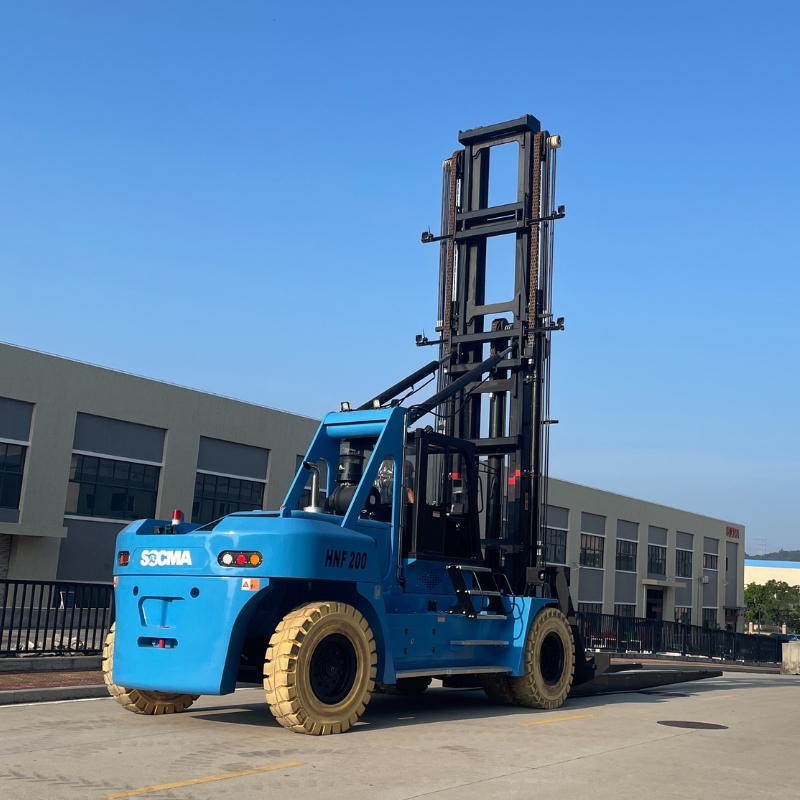

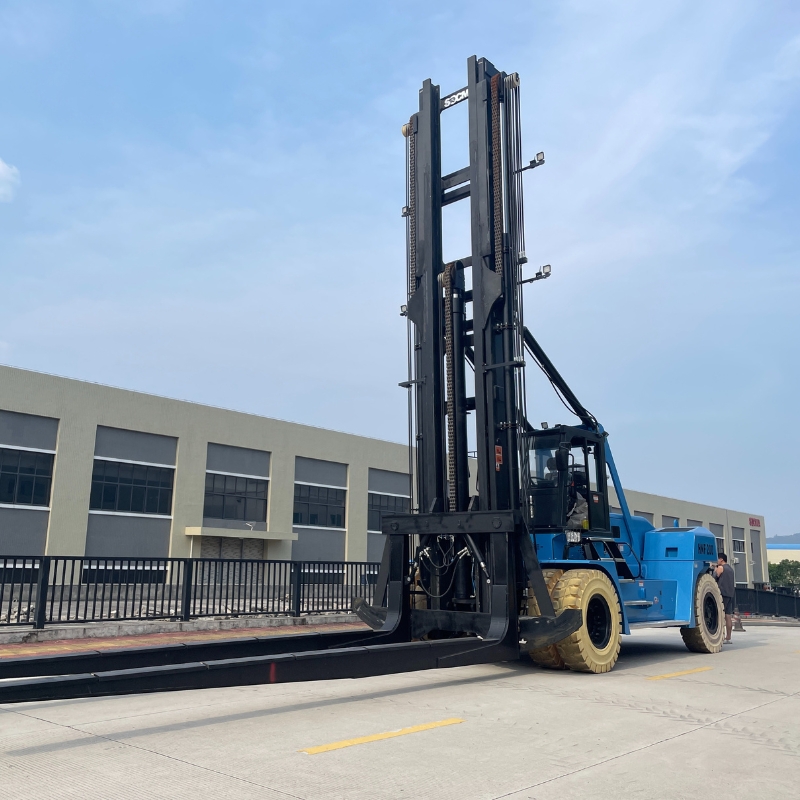

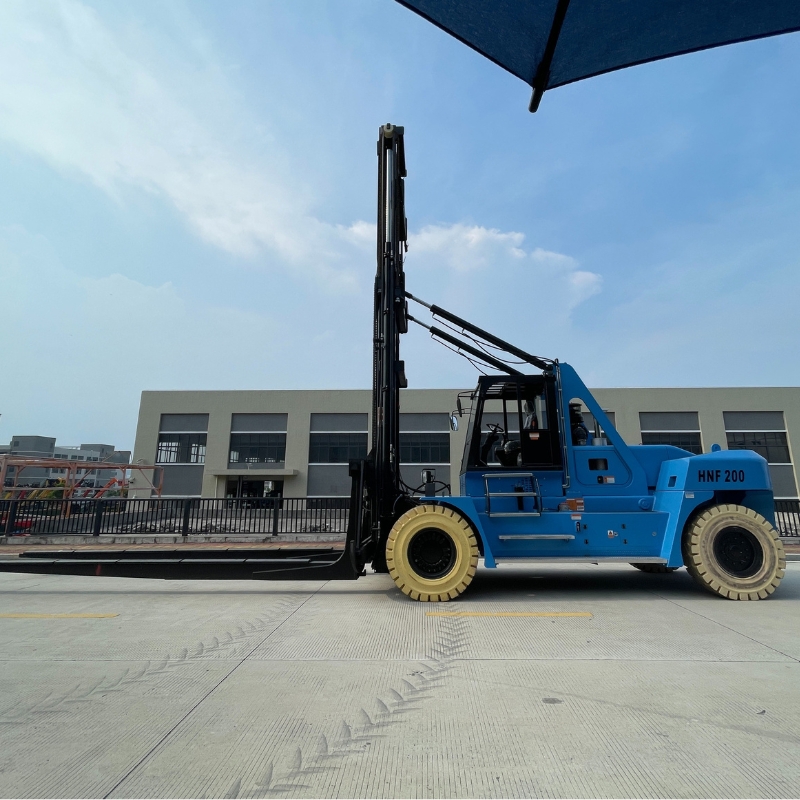

SOCMA HNF-200 Marina Forklift For Boat Lifting in Marinas

Product Description

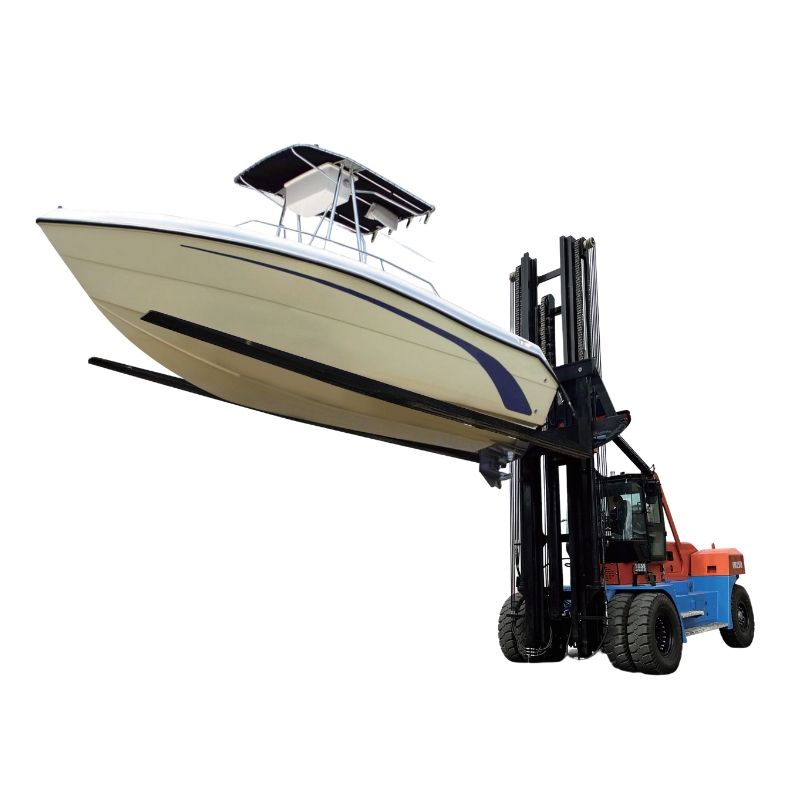

The SOCMA HNF-200 Marina Forklift is engineered for lifting boats in marina environments, featuring a 20-ton rated load, a 10-meter maximum lifting height, and a negative lift function to lift vessels from the sea to the dock. Its swinging forklift design allows for separation and combination, enhancing operational flexibility.

Equipped with a 9.3-litre Cummins QSL9.3-C220 engine delivering 162 kW at 2200 rpm, the HNF-200 ensures superior power and efficiency while meeting stringent emissions standards. The power shift transmission with a clutch pedal and smart shift technology provides smooth control and minimizes drivetrain wear.

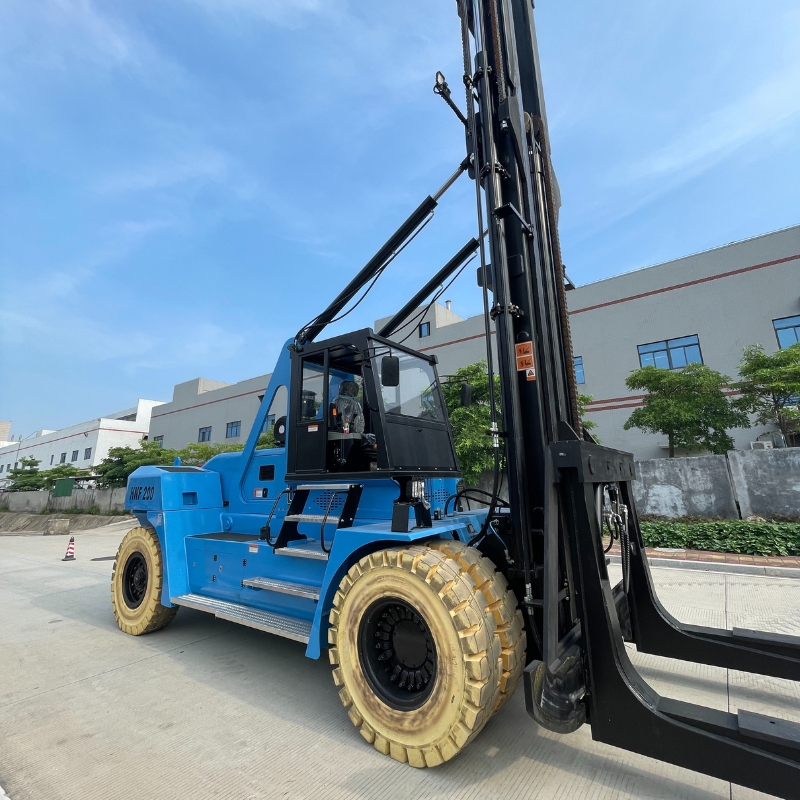

The HNF-200 prioritizes operator comfort and safety with a 360° wide-view cab, premium air seats, and electronic joystick controls for smooth operation. The forks are covered with rubber protection to safeguard the hull, and the all-round driving angle eliminates blind spots, ensuring maximum safety.

Product Parameter

Rated Load: 20 tons

Load Center: 1250 mm

Wheelbase: 4000 mm

Operating Weight: 43000 kg

Tyre Specs - Front: 14.00-24-28PR

Tyre Specs - Rear: 14.00-24-28PR

Tyres Qty (Front/Rear - Drive Wheels): 4/2

Wheel Tread - Front: 2200 mm

Wheel Tread - Rear: 2390 mm

Mast/Carriage Tilt Angle (Front/Rear): 3/6 degrees

Mast Height (Fork Lowering): 8150 mm

Max Lifting Height: 10000 mm

Max Fork Lowering Depth: 3600 mm

Overall Height (Fork Raised): 11900 mm

Height to Head Guard/Height to Cab: 3525 mm

Overall Length (with Forks): 7940 mm

Fork Front Vertical Surface to Rear End of Vehicle: 6440 mm

Overall Width: 3050 mm

Fork Size: 6500 x 250 x 110 mm

Fork Carriage Width: 3500 mm

Mast Min Ground Clearance (with Load): 300 mm

Wheelbase Center Min Ground Clearance (with Load): 420 mm

Min Turning Radius: 6250 mm

Travel Speed (with Load/without Load): 26/30 km/h

Max Lifting Speed (with Load/without Load): 260/270 mm/s

Max Lowering Speed (with Load/without Load): 310/260 mm/s

Traction: 17000 N

Gradeability (with Load/without Load): 20/21 %

Driving Brake: Hydraulic clamp disc

Engine Brand/Model: Cummins QSL9.3-C220

Engine Power: 162 kW at 2200 rpm

Cylinder No.: 6

Transmission Gears (Front/Rear): 2/1

Attachments Working Pressure: 160 bar

Attachments Using Oil Amount: 60 l/min
